Product Specification

www.shuttle.com

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5

25337 Elmshorn | Germany

Tel. +49 (0) 4121-47 68 60

Fax +49 (0) 4121-47 69 00

[email protected]

e 7

31 Jul

2009

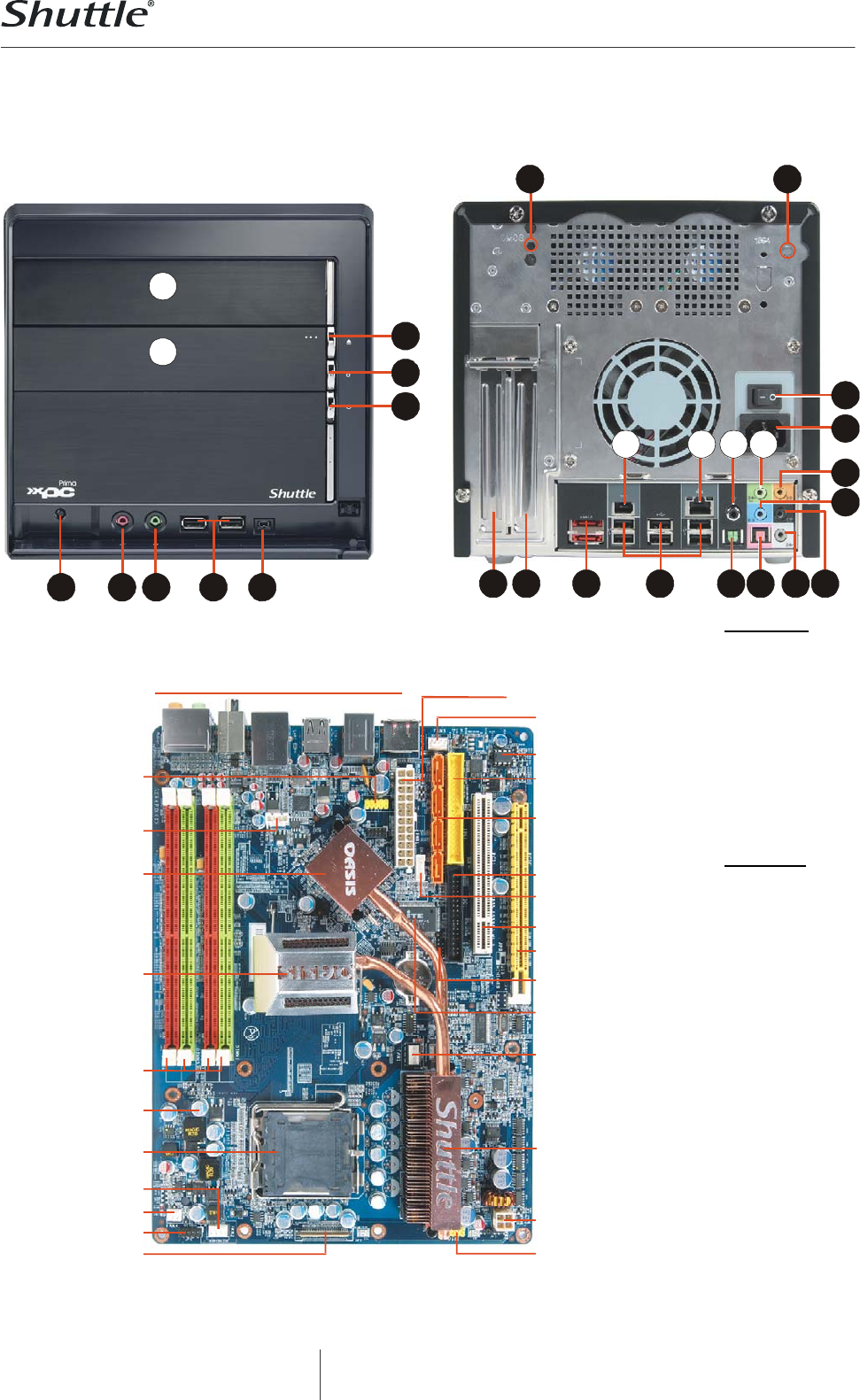

Shuttle XPC Barebone SP35P2 – Connectors and Components

109876

1 2

171813128765

10 11 14

Mainboard

Back panel connectors

ATX power connector

4x Serial ATA

IDE slot

BIOS chip

Fan connector

Floppy connector

PS/2 header

PCI Slot

PCIe x16 slot

CIR connector

I/O controller

Fan connector

TX power connector

USB header

Front Panel connector

Fan connector

CPU Socket 775

4x DDR2 sockets

Northbridge

Intel P35

Southbridge

Intel ICH9R

Front Panel connector

USB header

Audio input (AUX)

OASIS heat-pipe

Solid capacitors

Front Panel

5.25“ bay

3.5“ bay

Eject button

HDD LED

Power Switch & LED

Reset Button

Microphone input

Headphone output

USB 2.0 Ports

Mini Firewire port (1394)

Back Panel

Clear CMOS button

Wireless LAN perforation

AC Power Switch

AC Power Socket

PCI Express x16 slot

PCI slot

External SATA ports

USB 2.0 ports

Firewire port (1394)

Gigabit LAN ports

S/PDIF out (coaxial)

S/PDIF out (optical)

S/PDIF in (optical)

Line out (front)

Line in

Line out (center/bass)

Line out (back)

Line out (side)

Front Panel Back Panel

1 2 3 4 5 6 7

Product Specification 1
