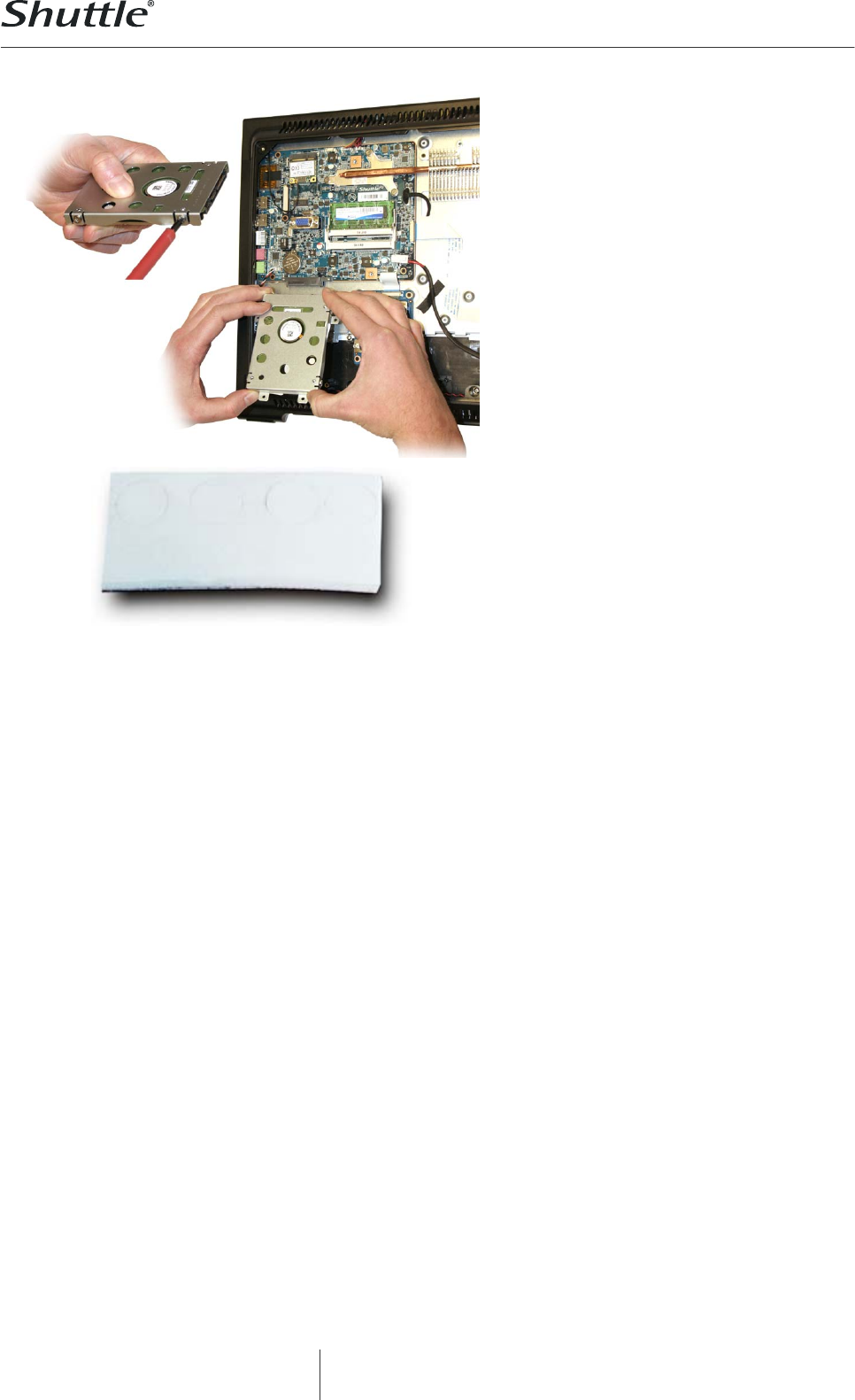

(8) Please insert a 2.5 inch S-ATA hard disk

with the connectors facing towards the

metal sheet into the drive cage. Please

then fix the hard disk with four screws and

carefully push it in afterwards to connect it.

(9) Please re-mount the two electro-

magnetic shieldings, the case cover and

the stand vice versa. Finally, click the cap

with the Shuttle logo back into place and

cover the four screw holes with the self-

adhesive rubber coverings if included in

the delivery scope.
